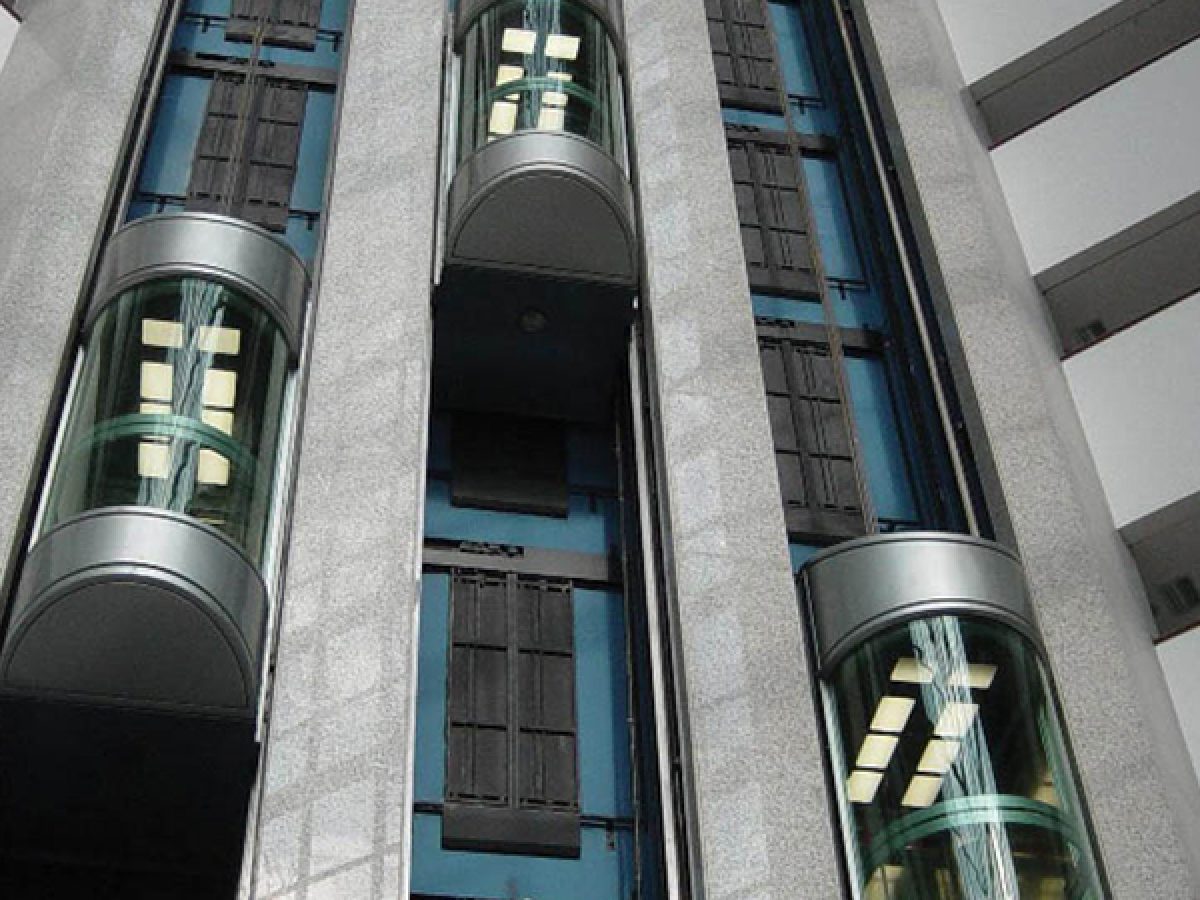

You can also monitor your elevators in your institution or business. While monitoring your energy production and consumption values, Solar energy production, Lighting and generators in the “Intelligent Building Management System” software, you can also monitor the elevators operating in your business. You can remotely control and monitor the status and movements of your elevators.
With this system, malfunction detections in your elevator, live situations (elevator down/up, door open/closed…etc.), archiving/storing of all movements, which floors are more busy at which times, gives you the opportunity to give remote commands. It shortens the time to notify technical personnel in case of malfunction or in an undesired situation. Thus, the elevator can be prevented from being out of service for a long time. With the monitoring of all movements and the data received, early maintenance periods can be created. All this information received from the elevator is transferred to the SCADA system. End user (or site management, mall management) with web application; The live status of the elevator, traffic analysis, vehicle notifications and the necessary information for reporting are always ready.
Lora communication infrastructure is used for this. LoRa is one of the Sub-GHz networks. Provides effective data transfer over long distances, low power consumption, high permeability.
It is a preferred radio communication method in urban IoT applications. IoT end devices that work on a private LoRa network and do not need ethernet or wi-fi networks transfer data to high-level systems depending on the usage scenarios and apply incoming commands.
The elevator monitoring system is based on LoRa, with a power consumption of 10 mA during operation and 150 mA (5V) during transmission.
With digital inputs, it sends the status of the elevator to the information systems over the RF network.
Thanks to this system, data transfer was provided from a place without Wi-Fi or Ethernet network connection.
Elevator status is detected with a resolution of 1 second. End user (or site management, mall management) with web application; The live status of the elevator, traffic analysis, vehicle notifications and the necessary information for reporting are always ready.
With ICONICS Genesis64 SCADA, you can monitor audio and visual statuses by creating a simple monitoring screen. The sample design is as follows:
With this design, you can get information about the remote status of your elevators, and the service times of your elevators can be monitored. When there is a malfunction, a warning screen appears on the SCADA screen and you can inform the technical team if needed.
